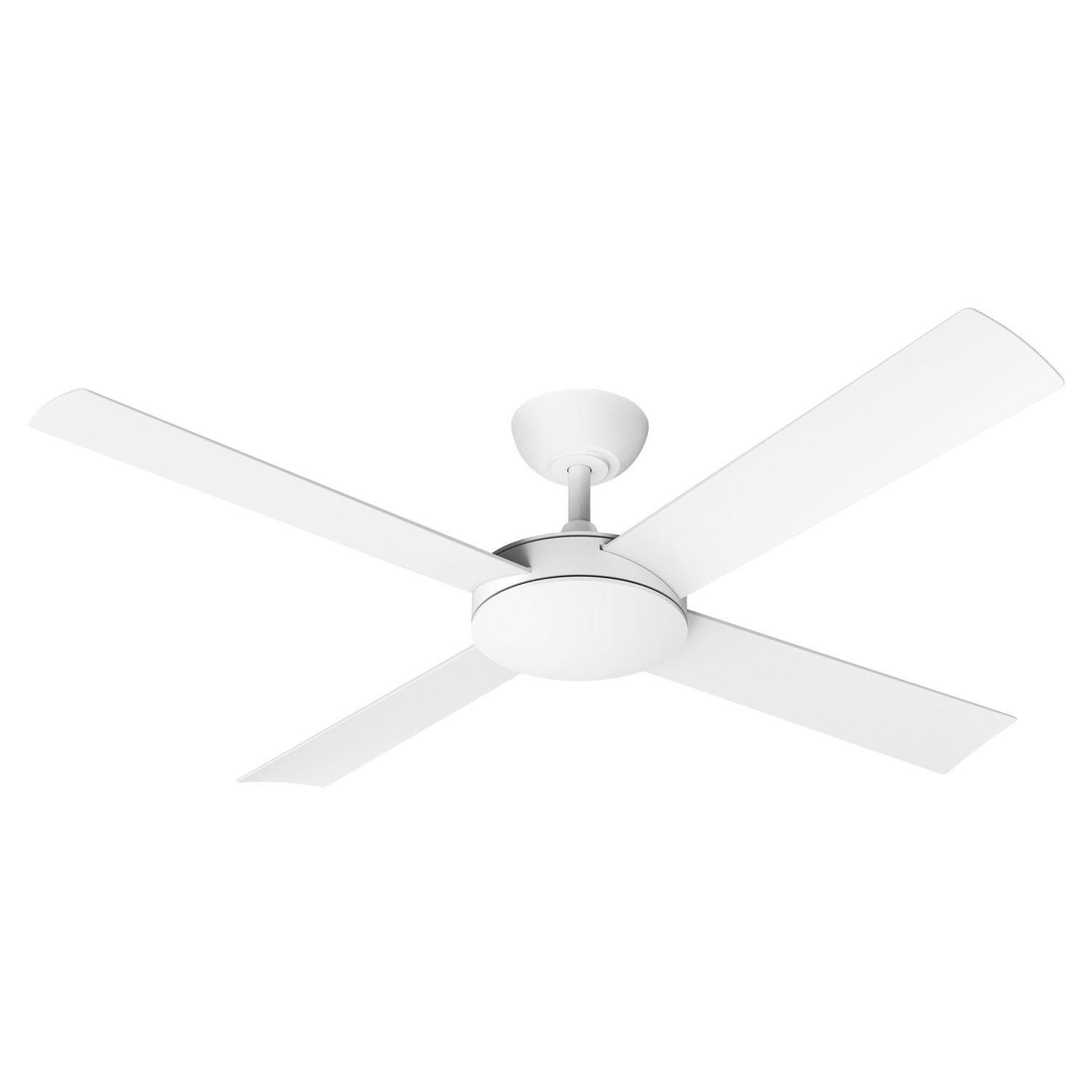

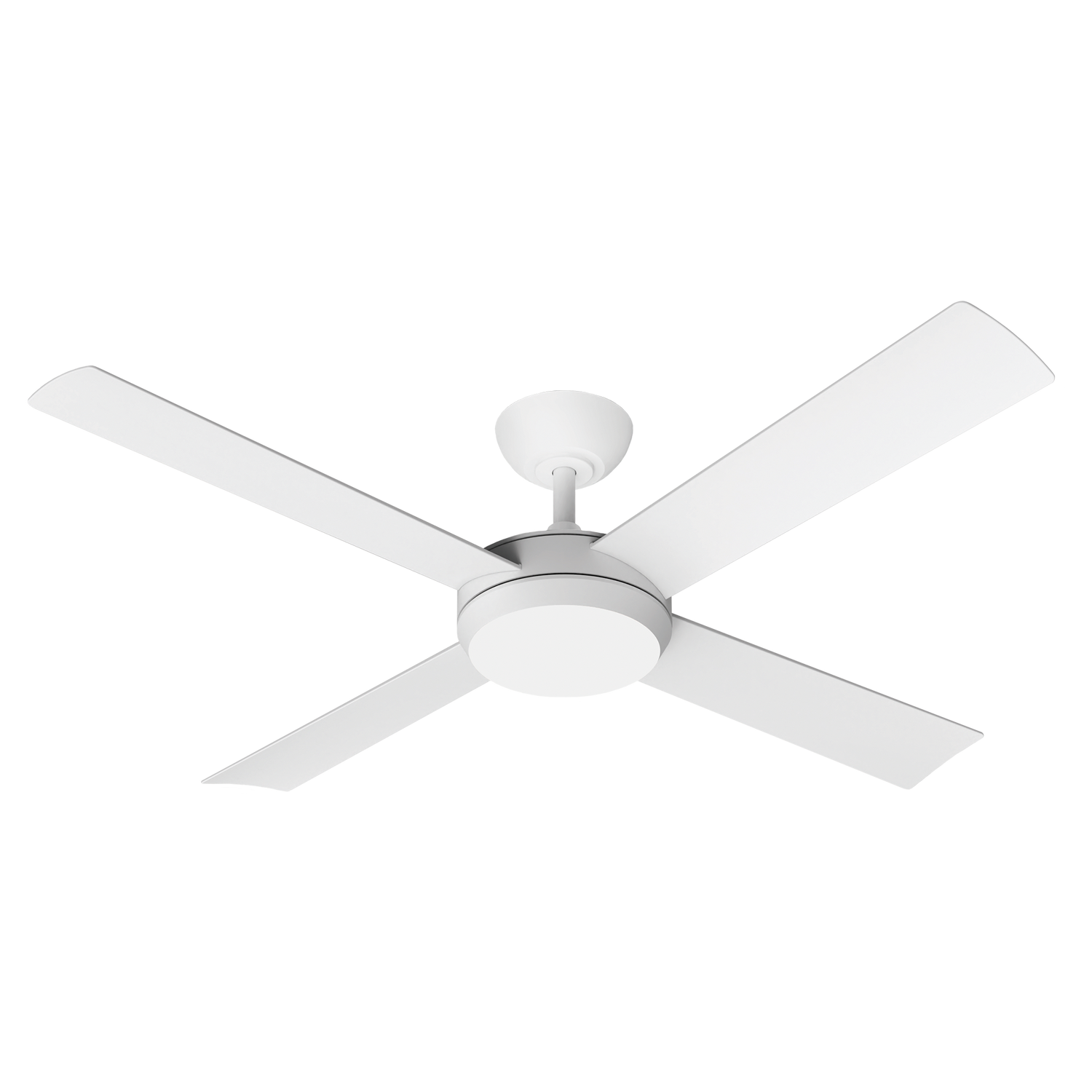

Proton DC ceiling fan

$159.00
SKU: MPDC124W
Choose Light:
Choose Size:

The Proton DC ceiling fan is designed with innovative Fast-Fix blade technology, allowing for quick and hassle-free installation. Powered by a quiet and energy-efficient 36W brushless DC motor, it delivers powerful, consistent airflow to keep you comfortable throughout the year. Available in 48" (1220mm) and 52" (1320mm) sizes, the Proton DC features a slimline design that suits both indoor spaces and covered outdoor areas. Its all-ABS construction, including the body, canopy, and blades, is complemented by a durable PMMA lens cover, ensuring long-lasting performance and a modern, refined appearance.

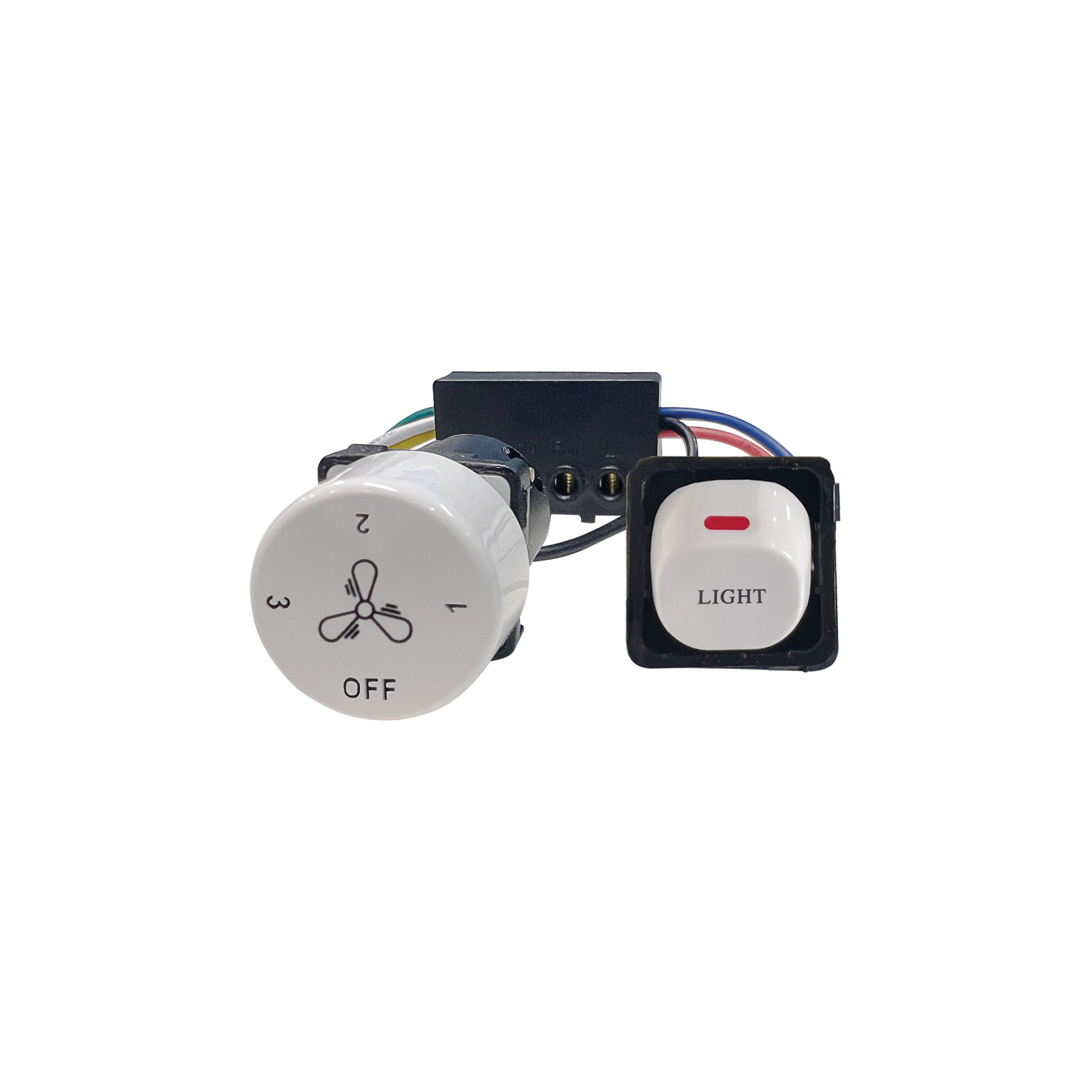

The fan is fully reversible for summer and winter operation, conveniently controlled via a knob on the supplied wall control (NOTE: wall plate not included).

It also includes an integrated 24W tricolour LED light with switchable colour temperatures of 3000K, 4000K, and 5000K, allowing you to tailor the lighting to your space. A wall control is included for ease of use, with the wall plate supplied separately.

Dimensions

Proton 48" without light: D 1220mm, H 300mm
Proton 48" with light : D 1220mm, H 325mm

Proton 52" without light: D 1320mm, H 300mm
Proton 52" with light: D 1320mm, H 325mm

Specifications
  • Power Wattage 36W
  • Voltage 220-240Va.c. 50-60Hz
  • Air movement m3/hr 12,000m³/hr
  • Number Of Speeds 3
  • Material ABS blades
  • Number of blades 4
  • Blade Pitch 12.5°
  • Hangsure canopy 10°
  • Lighting Wattage / Type 24W LED
  • Colour temperature 3000K / 4000K / 5000K
  • Lumens Output Up to 2500lm
  • Rated Lifetime 50,000hrs @ Ta25°C

Installation & Warranty

*Warranty is detailed on specification sheet, speak with GCM for more details.

  • LED
  • Fixed LED
  • Indoor/Covered Outdoor
  • Variable 2700K - 6000K
